Transformation Parameters

Description

Designs, lettering, and compounds can be transformed. Transformations include scaling, rotation, translation.

Parameters

• Angle - Angle of rotation in degrees clockwise. Rotation is centered on the center of the component. Default is 0.
• Scale - Scaling factor to apply. Units are percent. Scaling is centered on the center of the component. Default is 100%
• OffsetX - X directional offset to move the component. Positive values are to the right. Default is 0.
• OffsetY - Y directional offset to move the component. Positive values are down. Default is 0.
• ResetOrigin - True/False value to move the center of the component to the (0,0) location.

Using a combination of ResetOrigin=true, OffsetX, OffsetY will ensure that the center of the component is at a known location.

Example

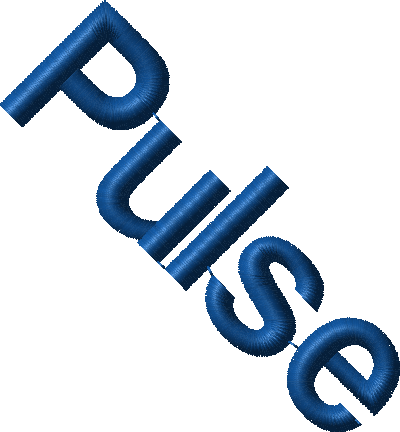

Lettering?Text=Pulse&ImageWidth=400&Angle=45

---
