Lettering

Description

Lettering is generated by using the "Lettering" option. The lettering option is added after the action. Lettering parameters are added after a ? character which is appended to Lettering.

For example: /1/Render/Lettering?Text=ABC

Parameters

• Type - Type of lettering to generate. Valid values are:
  • ltNormal - Straight text
  • ltMonogram - Three-letter monograms
  • ltArc - Text that follows the path of an arc
  • ltCircle - 2 lines of text that follow the path of a circle
  Default is "ltNormal".
• Text - Text to generate. Default is "ABC".
• Font - Font to use to generate the lettering. Default is "Block New". See list of available fonts.
• Height - Height of the text. Units are embroidery points. Default is "254".
• WidthCompression - Width compression of the text. Units are in percent. Default is "100" for 100%.
• Justification - Justification of the text. Valid values are:
  • jtCenter
  • jtLeft
  • jtRight
  • jtFillBox
  • jtFitToCurve
  • jtFitToCurve will only work when the X3 and Y3 values are specified to create a curve
  • See additional parameters below and Example 3 at the bottom of the page
  Default is jtCenter.
• Envelope - Envelope of the text. Valid values are:
  • etRectangle
  • etBridgeConcaveTop
  • etBridgeConcaveBottom
  • etDoubleConcaveBridges
  • etBridgeConvexTop
  • etBridgeConvexBottom
  • etDoubleConvexBridges
  • etConcaveTopConvexBottom
  • etConvexTopConcaveBottom
  • etPennantRight
  • etPennantLeft
  Default is etRectangle.
• Decoration - Decoration character to use. Valid only when Type="Monogram"
• Needle - Primary needle of the generated text. Needle is 0-based. Default is "0".
• Recipe - Recipe to use when generating the text. Default is "Normal". See list of available recipes.
  • Recipe Note: See render or generate which will apply a recipe on top of any existing
• MachineFormat - Machine format to use when generating the text. Default is "Tajima". See list of available machine formats.
• X1 - X-value of the first point of the baseline.
• Y1 - Y-value of the first point of the baseline.
• X2 - X-value of the second point of the baseline.
• Y2 - Y-value of the second point of the baseline.
• X3 - X-value of the third point of the baseline for ltArc type and jtFitToCurve justification only.
• Y3 - Y-value of the third point of the baseline for ltArc type and jtFitToCurve justification only.
• Palette[] - Array of palette colours. Values are RGB sextuplets (eg. ff0000 is red). See arrays for more information about specifying array values.
• IsRainbowText
• true or false. Default is false
• The Rainbow text feature is a way to instantly create multi-colored text in a design. The Rainbow text inserts a color change at the end of each letter in the selected text, and the next color is chosen randomly from the threads in the active palette
• RainbowColors - Array of rainbow color values.
• RainbowColors can only be set if the parameter IsRainbowText is set to true
• For each of the RainbowColors, there are 2 parameters that have be specified and 2 parameters that are required but conditional on each other:
• Name - The Name of the Thread Color to be set for the first color of the text
• Code - The Code of the Thread Color to be set for the first color of the text
• RGB - The Red, Green and Blue value of the Thread Color. Format is: 000,111,222. This is required only if the Hex parameter is not set
• Hex - The Hex value of the color that will be converted to an RGB value. Format is below. 6 characters in length. This is required only if the RGB parameter is not set
• Hexadecimal uses sixteen distinct symbols, in the case of css color the symbols 0–9 to represent values zero to nine (obviously), and A, B, C, D, E, F to represent values ten to fifteen. So, using one Hexadecimal character you can represent 16 values. With two Hexadecimal you can represent 256 (16*16) values.
• In RGB you have colours represented by Red Green Blue (R=0-255, G=0-255, B=0-255), so we use 3 pairs of Hexadecimal symbols! So when you see an RGB color, you can make the calculation below.
• Example:
• Hex: #4C8ED5 is RGB: 76, 142, 213.
• Because 4C = 76(Red), 8E = 142(Green), D5 = 213(Blue)
• RemoveUnusedNeedles - True/False value whether or not to remove unused needles from the design. Default is false.
• When the Type is ltCircle
• CenterX - X-value of the first point of the circle.
• CenterY - Y-value of the first point of the circle.
• RefX - X-value of the first point of the baseline from the X-value of the circle.
• RefY - Y-value of the first point of the baseline from the Y-value of the circle.
• See example 4 below
• IsColoreel
  • true or false. Default is false
  • The Coloreel feature applies Coloreel effects such as gradient and repeating pattern to a text segment and designs
  • ColoreelLibrary: The name of the Coloreel Library configured in DG. Required.
  • ColoreelEffectName: Name of the effect configured in the Coloreel Library. Required.

Compounds can have their Start/Stop points specified. See start/stop parameters.

Lettering can be transformed. See transformation parameters.

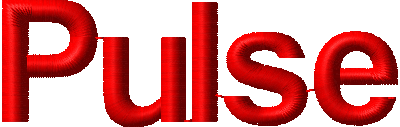

Example 1

Lettering?Text=Pulse&ImageWidth=400&Palette[0]=ff0000

Example 2

Lettering?Text=ABC&Type=ltMonogram&Decoration=*&Font=Monogram 1

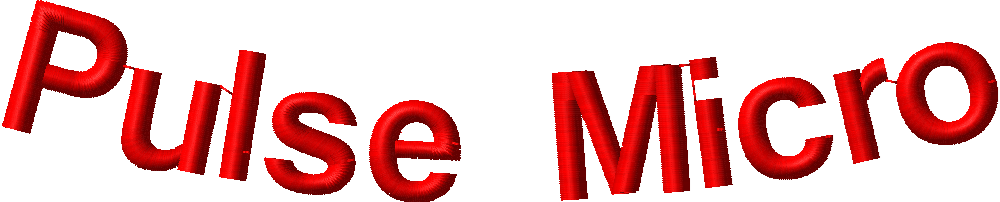

Example 3

Lettering?Text=Pulse Micro&Type=ltArc&ImageWidth=1000&X1=-1000&Y1=0&X2=0&Y2=150&X3=1000&Y3=0&Justification=jtCenter&Palette[0]=ff0000

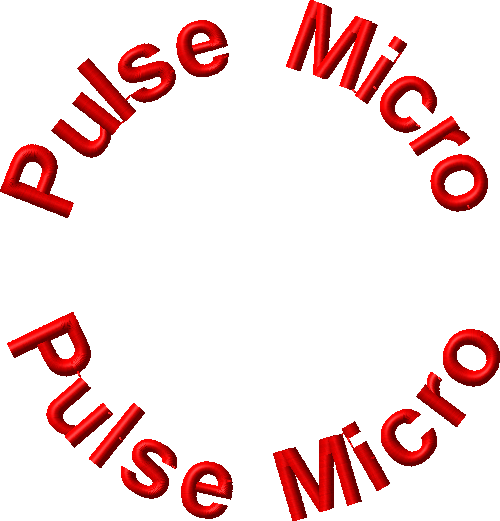

Example 4

Lettering?Text=Pulse Micro&BottomText=Pulse Micro&Type=ltCircle&ImageWidth=500&CenterX=0&CenterY=0&RefX=0&RefY=-700&Justification=jtCenter&Palette[0]=ff0000

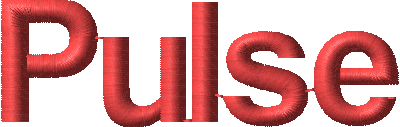

Example 5

Lettering?Text=Pulse&ImageWidth=400&IsColoreel=true&ColoreelLibrary=Coloreel%20Medium&ColoreelEffectName=%23FF4B4B

---
